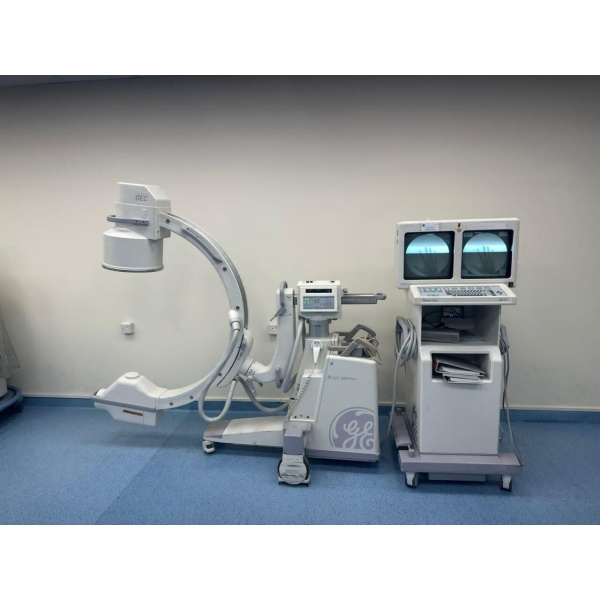

GE OEC 9800 Plus
Specifications
The GE OEC 9800 Plus is the gold standard in mobile fluoroscopy applications and innovative X-ray imaging technology. The OEC 9800 Plus offers full 1k2 high-resolution imaging on a mobile system. It features proprietary image I.Q. for uncompromised image quality. The 9800 Plus has an enhanced mechanical design which is ideal for a wide range of applications It provides solutions for the most demanding needs in pain management, general, orthopedic, vascular, neurovascular, and cardiac surgeries. This Mobile C-arm is the benchmark for fluoroscopy applications and X-ray technology with its touch-screen operations, crisp and clear images, low X-ray dosage, and a 15 kW generator. This C-arm has broken the barrier traditionally reserved for contemporary fixed-room imaging systems.
This X-ray system features Image I.Q. which is GE’s proprietary image intelligence technology. This is the technology that provides the extraordinary image quality. To help with this quality, this system is equipped with Smart Window and Smart Metal Technology.
PHILIPS ALLURA XPER FD10 CATHLAB MACHINE
Specifications
X-ray generator The Velara generator is optimized for the latest interventional X-ray needs. 3.2 X-ray tube The Allura Xper FD10 is provided with the legendary high power MRC-GS 0508 X-ray tube which allows for very high heat dissipation, enabling SpectraBeam filtration to reduce the patient X-ray dose. Features Specifications Generated power Microprocessor-controlled, 100 kW high frequency converter generator Minimum switching time Quartz-controlled power-switch, with a minimum switching time of one ms Voltage range: 40 to 125 kV Maximum current: 1250 mA at 80 kV Maximum continuous power: 2.4 kW for 0.5 hours, 2 kW for eight hours Nominal power (highest electrical power): 100 kW (1000 mA at 100 kV) With Xper settings on the Xper Module, different exposure protocols can be customized for every clinical application. Features Specifications Focal spot size and loadability 0.5/0.8 nominal focal spot values with maximal 45 respectively 85 kW loadability Grid-switched pulsed fluoroscopy Yes Fluoro power for 10 minutes 4,500 W Fluoro power for 20 minutes.
